[MAD MBS] L4 Processor x16

2 feb 2022

L4 Processor x16 for the Modular Backtest System

This is a Multibit Signal Processor with 16 Channels and 8 Bool/Timer-Blocks

it can remap each inputport ot each outputport
it can also use classic -1 0 +1 signals and map it to the a Mulitbit transfer system

it can manipulate 16 individual channels via 8 basic gate functions like:
AND OR NOT NAND NOR XOR XNOR
im not going to explain this most basic operations here..
for exact description go here en.wikipedia.org/wiki/Logic_gate...

Basic Timer functions
Pulse(TP) only a impulse true false
Delay Pulse(TPD) only a delayed true false (signal has to remain delaytime to activate)
On Delay(TON) time delay to bit true (signal has to remain delaytime to activate)
Off Delay( TOF ) time delay to bit false
DeviationFilter ( MDP ) minimum deviation percent limits signals to each every % movement.
centerpoint 1000 S2 < 1000 S3 > 1000

Each manipulation block houses 5 Parameters
Input Channel 1
Input Channel 2 (Channel-ID or bars to pass or Percentage-shrink)
Input Channel 3 (Channel-ID or Percentage-grow)
Output Channel
Operation type (And,Or,..)

Works together with the [MAD MBS] Ecosystem
L1 Signals (emacross...)
L2 Indicators
L3 Processor x8
L4 Processor x16 - x64
L5 Riskmanagement

5 feb 2022

Note di rilascio

Added the "Digitalsignal 1 0 -1 Plot for Backtester MK6 nad Backtester MK5 compatibility

Added the RATE function

messuring amount of true in given time
Example Setup
0 20 10 1 RATE (inputs channel 1, 20 bars countingtime, 10 signals needed, output 1)

5 feb 2022

Note di rilascio

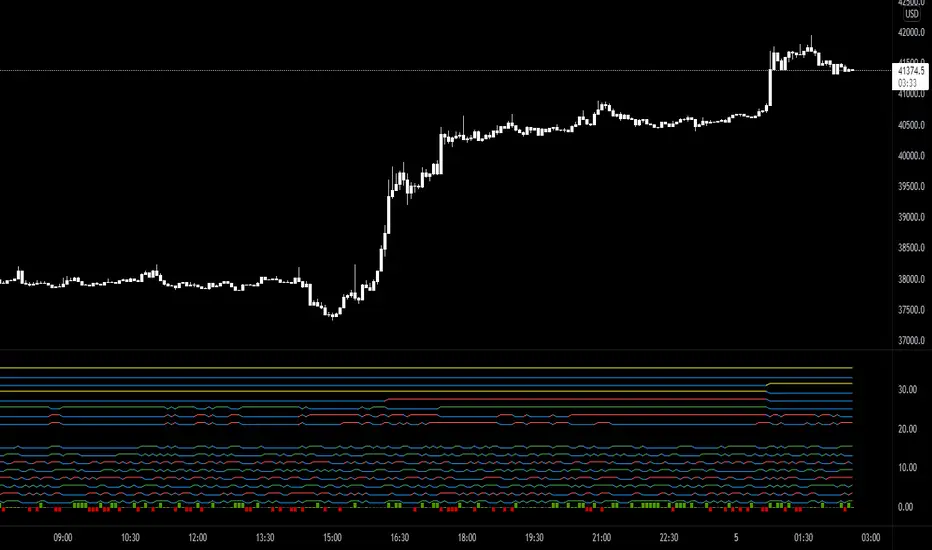

Screenshot Update

10 feb 2022

Note di rilascio

1,0,-1 output for MK6 Compatibility

23 ott 2022

Note di rilascio

libary update
