Combing in MACD and MTF

17 mag 2020

Hi all, I'm trying to wedge in the MACD into a multiple timeframe. Scope is to create:
1) an alert when the MACD across all timeframes is positive,
2) an alert when the MACD across all timeframes is negative, and
3) one when neither of them is applicable.

Would anyone be so kind to give it some thoughts, please?

//version=2
strategy("[RichG] Easy MTF Strategy", overlay=false)

TF_1_time = input("3", "Timeframe 1")
TF_2_time = input("5", "Timeframe 2")
TF_3_time = input("15", "Timeframe 3")
TF_4_time = input("30", "Timeframe 4")

fastLen = input(title="Fast Length", type=integer, defval=12)
slowLen = input(title="Slow Length", type=integer, defval=26)
sigLen = input(title="Signal Length", type=integer, defval=9)
[macdLine, signalLine, _] = macd(close, fastLen, slowLen, sigLen)

width = 5
upcolor = green
downcolor = red
neutralcolor = blue
linestyle = line

TF_1 = security(tickerid, TF_1_time, open) < security(tickerid, TF_1_time, close) ? true:false
TF_1_color = TF_1 ? upcolor:downcolor

TF_2 = security(tickerid, TF_2_time, open) < security(tickerid, TF_2_time, close) ? true:false
TF_2_color = TF_2 ? upcolor:downcolor

TF_3 = security(tickerid, TF_3_time, open) < security(tickerid, TF_3_time, close) ? true:false
TF_3_color = TF_3 ? upcolor:downcolor

TF_4 = security(tickerid, TF_4_time, open) < security(tickerid, TF_4_time, close) ? true:false
TF_4_color = TF_4 ? upcolor:downcolor

TF_global = TF_1 and TF_2 and TF_3 and TF_4
TF_global_bear = TF_1 == false and TF_2 == false and TF_3 == false and TF_4 == false
TF_global_color = TF_global ? green : TF_global_bear ? red : white
TF_trigger_width = TF_global ? 6 : width

plot(1, style=linestyle, linewidth=width, color=TF_1_color)
plot(5, style=linestyle, linewidth=width, color=TF_2_color)
plot(10, style=linestyle, linewidth=width, color=TF_3_color)
plot(15, style=linestyle, linewidth=width, color=TF_4_color)
plot(25, style=linestyle, linewidth=4, color=TF_global_color)

exitCondition_Long = TF_global_bear
exitCondition_Short = TF_global

longCondition = TF_global
if (longCondition)
strategy.entry("MTF_Long", strategy.long)

shortCondition = TF_global_bear
if (shortCondition)
strategy.entry("MTF_Short", strategy.short)

strategy.close("MTF_Long", when=exitCondition_Long)
strategy.close("MTF_Short", when=exitCondition_Short)

17 mag 2020

Note di rilascio

cleaned up the MACD references in the MTF snippets

17 mag 2020

Note di rilascio

updated the exit points

18 mag 2020

Note di rilascio

polished the exit points

18 mag 2020

Note di rilascio

polished the name

18 mag 2020

Note di rilascio

Guys, I need some help, please.

1) why doesn't my script close a position when TF_global_off kicks in? and
2) why there is a gap of time between the fulfilment of a condition (all green or all red) and the actual opening?

thanks in advance

18 mag 2020

Note di rilascio

further polishing

18 mag 2020

Note di rilascio

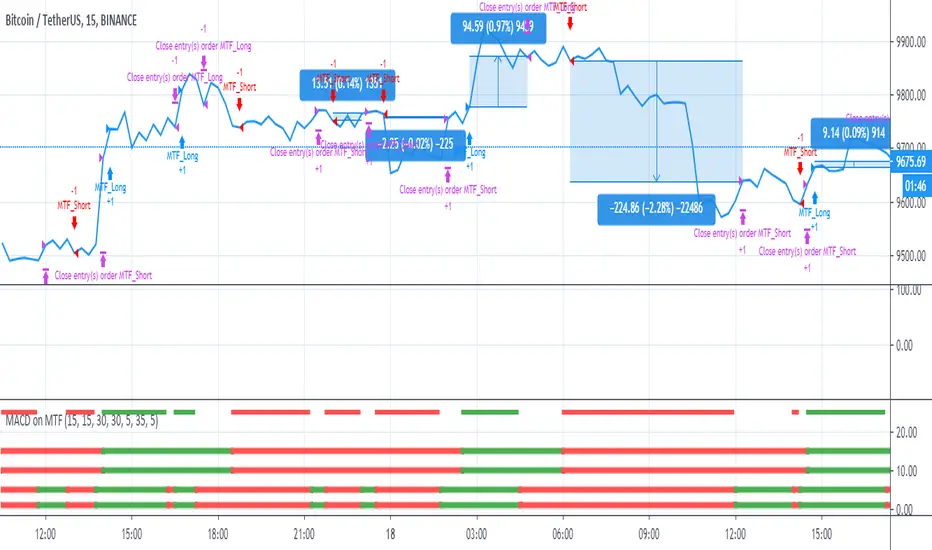

this should be the final version. Exit points correctly visualised and good results.
only regret I have is that I would prefer to be able to count data from the open of the candle, instead of the close.
