Ultimate BAMF Indicator

//version=6
indicator("Ultimate BAMF Indicator", overlay=true)

// =============================================================================
// Section 1: OHLC Annotations
// =============================================================================

// Input to toggle OHLC annotations
ohlc_show = input.bool(true, title="Show OHLC Annotations", group="OHLC Settings")

// Adjustable colors and transparency for resistance (tops)
ohlc_high_body_color = input.color(color.red, title="Body High Color (Resistance)", group="OHLC Colors")
ohlc_high_body_transparency = input.int(50, title="Body High Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")
ohlc_high_wick_color = input.color(color.new(color.red, 20), title="Wick High Color (Resistance)", group="OHLC Colors")
ohlc_high_wick_transparency = input.int(50, title="Wick High Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")
ohlc_high_shade_color = input.color(color.red, title="Resistance Shade Color", group="OHLC Colors")
ohlc_high_shade_transparency = input.int(80, title="Resistance Shade Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")

// Adjustable colors and transparency for support (bottoms)
ohlc_low_wick_color = input.color(color.green, title="Wick Low Color (Support)", group="OHLC Colors")
ohlc_low_wick_transparency = input.int(50, title="Wick Low Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")
ohlc_low_body_color = input.color(color.new(color.green, 20), title="Body Low Color (Support)", group="OHLC Colors")
ohlc_low_body_transparency = input.int(50, title="Body Low Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")
ohlc_low_shade_color = input.color(color.green, title="Support Shade Color", group="OHLC Colors")
ohlc_low_shade_transparency = input.int(80, title="Support Shade Transparency (0-100)", minval=0, maxval=100, group="OHLC Colors")

// Variables to store lines, boxes, and labels for deletion
var line ohlc_body_high_line = na
var line ohlc_wick_high_line = na
var box ohlc_high_shade_box = na
var label ohlc_body_high_label = na
var label ohlc_wick_high_label = na
var label ohlc_wick_low_label = na
var label ohlc_body_low_label = na
var box ohlc_low_shade_box = na

// Variables to control circle visibility
var float ohlc_wick_low_shape = na
var float ohlc_body_low_shape = na

// Extend lines and boxes to the right edge of the chart (within 500-bar limit)
ohlc_right_edge = bar_index + 500 // Limit to 500 bars into the future to avoid runtime error

// Detect when a new bar starts using time comparison (store result in global variable)
ohlc_is_new_bar = ta.change(time) != 0

// Use the global variable in the condition
if ohlc_show and ohlc_is_new_bar
// Delete previous lines, boxes, and labels
if not na(ohlc_body_high_line)
line.delete(ohlc_body_high_line[1])
if not na(ohlc_wick_high_line)
line.delete(ohlc_wick_high_line[1])
if not na(ohlc_high_shade_box)
box.delete(ohlc_high_shade_box[1])
if not na(ohlc_body_high_label)
label.delete(ohlc_body_high_label[1])
if not na(ohlc_wick_high_label)
label.delete(ohlc_wick_high_label[1])
if not na(ohlc_wick_low_label)
label.delete(ohlc_wick_low_label[1])
if not na(ohlc_body_low_label)
label.delete(ohlc_body_low_label[1])
if not na(ohlc_low_shade_box)
box.delete(ohlc_low_shade_box[1])

// Clear previous circles
ohlc_wick_low_shape := na
ohlc_body_low_shape := na

// Calculate OHLC values for the previous candle
ohlc_prev_open = open[1]
ohlc_prev_close = close[1]
ohlc_prev_high = high[1]
ohlc_prev_low = low[1]

// Determine body high and body low for the previous candle
ohlc_prev_body_high = math.max(ohlc_prev_open, ohlc_prev_close)
ohlc_prev_body_low = math.min(ohlc_prev_open, ohlc_prev_close)

// Draw shaded area between body high and wick high (resistance)
if ohlc_prev_body_high < ohlc_prev_high
ohlc_high_shade_box := box.new(bar_index[1], ohlc_prev_body_high, ohlc_right_edge, ohlc_prev_high, border_color=na, bgcolor=color.new(ohlc_high_shade_color, ohlc_high_shade_transparency))
else
ohlc_high_shade_box := box.new(bar_index[1], ohlc_prev_high, ohlc_right_edge, ohlc_prev_body_high, border_color=na, bgcolor=color.new(ohlc_high_shade_color, ohlc_high_shade_transparency))

// Draw horizontal lines for body high and wick high with adjustable transparency
ohlc_body_high_line := line.new(bar_index[1], ohlc_prev_body_high, ohlc_right_edge, ohlc_prev_body_high, color=color.new(ohlc_high_body_color, ohlc_high_body_transparency), style=line.style_solid)
ohlc_wick_high_line := line.new(bar_index[1], ohlc_prev_high, ohlc_right_edge, ohlc_prev_high, color=color.new(ohlc_high_wick_color, ohlc_high_wick_transparency), style=line.style_dotted)

// Draw shaded area between wick low and body low (support)
if ohlc_prev_low < ohlc_prev_body_low
ohlc_low_shade_box := box.new(bar_index[1], ohlc_prev_low, ohlc_right_edge, ohlc_prev_body_low, border_color=na, bgcolor=color.new(ohlc_low_shade_color, ohlc_low_shade_transparency))
else
ohlc_low_shade_box := box.new(bar_index[1], ohlc_prev_body_low, ohlc_right_edge, ohlc_prev_low, border_color=na, bgcolor=color.new(ohlc_low_shade_color, ohlc_low_shade_transparency))

// Circles for wick low and body low with adjustable transparency
ohlc_wick_low_shape := ohlc_prev_low
ohlc_body_low_shape := ohlc_prev_body_low

// Labels for the previous bar's values with matching colors and adjustable transparency
ohlc_body_high_label := label.new(bar_index[1], ohlc_prev_body_high, text="H: " + str.tostring(ohlc_prev_body_high, format.mintick), color=color.new(ohlc_high_body_color, 70), textcolor=color.white, style=label.style_label_left, textalign=text.align_left)
ohlc_wick_high_label := label.new(bar_index[1], ohlc_prev_high, text="H: " + str.tostring(ohlc_prev_high, format.mintick), color=color.new(ohlc_high_wick_color, 70), textcolor=color.white, style=label.style_label_left, textalign=text.align_left)
ohlc_wick_low_label := label.new(bar_index[1], ohlc_prev_low, text="L: " + str.tostring(ohlc_prev_low, format.mintick), color=color.new(ohlc_low_wick_color, 70), textcolor=color.white, style=label.style_label_up, textalign=text.align_center)
ohlc_body_low_label := label.new(bar_index[1], ohlc_prev_body_low, text="L: " + str.tostring(ohlc_prev_body_low, format.mintick), color=color.new(ohlc_low_body_color, 70), textcolor=color.white, style=label.style_label_up, textalign=text.align_center)

// Plot circles for wick low and body low with adjustable transparency
plotshape(ohlc_wick_low_shape, style=shape.circle, location=location.absolute, color=color.new(ohlc_low_wick_color, ohlc_low_wick_transparency), size=size.tiny)
plotshape(ohlc_body_low_shape, style=shape.circle, location=location.absolute, color=color.new(ohlc_low_body_color, ohlc_low_body_transparency), size=size.tiny)

// =============================================================================
// Section 2: Real-Time Stock Analysis with Trade Automation Signals
// =============================================================================

// --- Inputs ---
rt_smaLength = input.int(10, "SMA Length for Trend", group="Real-Time Analysis Settings")
rt_rsiLength = input.int(9, "RSI Length", group="Real-Time Analysis Settings")
rt_macdFast = input.int(12, "MACD Fast Length", group="Real-Time Analysis Settings")
rt_macdSlow = input.int(26, "MACD Slow Length", group="Real-Time Analysis Settings")
rt_macdSignal = input.int(9, "MACD Signal Length", group="Real-Time Analysis Settings")
rt_bbLength = input.int(20, "Bollinger Bands Length", group="Real-Time Analysis Settings")
rt_bbMult = input.float(2.0, "Bollinger Bands Multiplier", group="Real-Time Analysis Settings")
rt_volumeThreshold = input.float(0.8, "Volume Threshold (x Average)", group="Real-Time Analysis Settings")

// --- Trend Analysis (SMC-like) for Current Timeframe ---
rt_sma = ta.sma(close, rt_smaLength)
rt_trendBias = close > rt_sma ? "Bullish" : close < rt_sma ? "Bearish" : "Neutral"

// --- MTF Trend Analysis ---
f_getTrendBias(tf) =>
close_tf = request.security(symbol=syminfo.tickerid, timeframe=tf, expression=close, gaps=barmerge.gaps_off)
sma_tf = ta.sma(close_tf, rt_smaLength)
trend = close_tf > sma_tf ? "Bullish" : close_tf < sma_tf ? "Bearish" : "Neutral"
trend

rt_trendBias_30m = f_getTrendBias("30")
rt_trendBias_1h = f_getTrendBias("60")
rt_trendBias_4h = f_getTrendBias("240")

// --- Volume Analysis ---
rt_avgVolume = ta.sma(volume, 20)
rt_volumeRatio = volume / rt_avgVolume
rt_volumeStatus = rt_volumeRatio >= rt_volumeThreshold ? "High Vol" : "Thin Vol"

// --- RSI ---
rt_rsi = ta.rsi(close, rt_rsiLength)
rt_rsiStatus = rt_rsi > 70 ? "Overbought" : rt_rsi < 30 ? "Oversold" : "Neutral"

// --- MACD ---
[rt_macdLine, rt_signalLine, rt_hist] = ta.macd(close, rt_macdFast, rt_macdSlow, rt_macdSignal)
rt_macdStatus1 = rt_macdLine > rt_signalLine ? "Bullish" : "Bearish"
rt_macdStatus2 = rt_macdLine > 0 ? "Bullish" : "Bearish"
rt_macdStatus3 = rt_hist > 0 ? "Bullish" : "Bearish"
rt_macdStatus = rt_macdStatus1 + ", " + rt_macdStatus2 + ", " + rt_macdStatus3

// --- Bollinger Bands ---
rt_basis = ta.sma(close, rt_bbLength)
rt_dev = rt_bbMult * ta.stdev(close, rt_bbLength)
rt_upperBB = rt_basis + rt_dev
rt_lowerBB = rt_basis - rt_dev
rt_bbStatus = close > rt_upperBB ? "Above Upper" : close < rt_lowerBB ? "Below Lower" : "Within"

// --- Improved Candle Analysis ---
rt_bodySize = math.abs(close - open)
rt_avgBodySize = ta.sma(rt_bodySize, 10)
rt_isSignificantCandle = rt_bodySize > 0.5 * rt_avgBodySize
rt_candleDirection = close > open ? "Bullish" : close < open ? "Bearish" : "Neutral"
var string rt_prevCandleDirection = "Neutral"
rt_candleStatus = rt_isSignificantCandle ? (rt_candleDirection != rt_prevCandleDirection ? rt_candleDirection + " Change" : rt_candleDirection) : "Neutral"
rt_prevCandleDirection := rt_candleDirection

// --- Enhanced Target Zone & Stop-Loss ---
rt_swingHigh = ta.highest(high, 10)
rt_swingLow = ta.lowest(low, 10)
rt_prevSwingHigh = ta.highest(high[10], 10)
rt_prevSwingLow = ta.lowest(low[10], 10)
rt_marketStructure = rt_swingHigh > rt_prevSwingHigh and rt_swingLow > rt_prevSwingLow ? "Bullish" : rt_swingHigh < rt_prevSwingHigh and rt_swingLow < rt_prevSwingLow ? "Bearish" : "Ranging"

// Define Target and Stop-Loss based on market structure
rt_targetZone = rt_marketStructure == "Bullish" ? rt_swingHigh : rt_marketStructure == "Bearish" ? rt_swingLow : na
rt_stopLoss = rt_marketStructure == "Bullish" ? rt_swingLow : rt_marketStructure == "Bearish" ? rt_swingHigh : na

// Ensure 3:1 RRR by adjusting target if needed
rt_entryPrice = close
rt_distanceToStop = math.abs(rt_entryPrice - rt_stopLoss)
rt_targetZone := rt_marketStructure == "Bullish" ? rt_entryPrice + 3 * rt_distanceToStop : rt_marketStructure == "Bearish" ? rt_entryPrice - 3 * rt_distanceToStop : rt_targetZone

// RRR Calculation
rt_denominator = rt_distanceToStop
rt_rrr = math.abs(rt_denominator) > 0.01 ? (rt_targetZone - rt_entryPrice) / rt_denominator : na
rt_rrrText = not na(rt_rrr) ? str.tostring(math.round(rt_rrr, 1), "#.#") : "N/A"

// --- Momentum (Rate of Change) ---
rt_roc = ta.roc(close, 5)
rt_momentumBullish = rt_roc > 0
rt_momentumBearish = rt_roc < 0

// --- Market Structure Analysis ---
rt_marketTrendBias = rt_trendBias
rt_trendStrength = rt_rsi > 50 and rt_macdLine > rt_signalLine ? "Strong Bullish" : rt_rsi < 50 and rt_macdLine < rt_signalLine ? "Strong Bearish" : "Neutral"
rt_whatToWatch = "Price may stall if vol weak\nHold > " + str.tostring(math.round(close * 0.95, 2), "#.##") + " = continue\nBreak < " + str.tostring(math.round(close * 0.85, 2), "#.##") + " = invalid\nTrail stops if in profit"

// --- Mini Gauge Metrics ---
rt_heat = rt_trendStrength == "Strong Bullish" ? "Strong Bull" : rt_trendStrength == "Strong Bearish" ? "Strong Bear" : "Neutral"
rt_trendScore = rt_rsi > 70 ? "5/5" : rt_rsi > 60 ? "4/5" : rt_rsi > 50 ? "3/5" : rt_rsi > 40 ? "2/5" : "1/5"
rt_choppy = ta.stdev(close, 20) > ta.stdev(close[20], 20) ? "Trending" : "Choppy"
rt_entryFilter = rt_rsi > 70 or rt_rsi < 30 ? "Not worth risk" : "Potential entry"
rt_exitNote = "Monitor key lvl or momentum"
rt_miniTradeSuggestion = "Momentum favors " + (rt_trendBias == "Bullish" ? "bulls" : "bears") + ". Await CHOCH/BOS"

// --- Trade Signals ---
rt_buySignal = rt_momentumBullish and rt_volumeRatio >= rt_volumeThreshold and rt_marketStructure == "Bullish"
rt_sellSignal = rt_momentumBearish and rt_volumeRatio >= rt_volumeThreshold and rt_marketStructure == "Bearish"
rt_setupStatus = rt_buySignal ? "Long/Call Active" : rt_sellSignal ? "Short/Put Active" : "No Signal"

// --- Colors ---
rt_red = color.red
rt_green = color.green
rt_blue = color.blue
rt_gray = color.gray
rt_yellow = color.yellow
rt_white = color.white
rt_black = color.black
rt_sectionHeaderColor = color.new(rt_gray, 70)

// --- Precompute Colors for Dashboard ---
rt_trendColor = rt_trendBias == "Bullish" ? rt_green : rt_trendBias == "Bearish" ? rt_red : rt_yellow
rt_trendColor_30m = rt_trendBias_30m == "Bullish" ? rt_green : rt_trendBias_30m == "Bearish" ? rt_red : rt_yellow
rt_trendColor_1h = rt_trendBias_1h == "Bullish" ? rt_green : rt_trendBias_1h == "Bearish" ? rt_red : rt_yellow
rt_trendColor_4h = rt_trendBias_4h == "Bullish" ? rt_green : rt_trendBias_4h == "Bearish" ? rt_red : rt_yellow
rt_volumeColor = rt_green
rt_macdColor = rt_macdStatus1 == "Bullish" ? rt_green : rt_red
rt_tradeColor = rt_buySignal ? rt_green : rt_sellSignal ? rt_red : rt_yellow
rt_trendStrengthColor = rt_trendStrength == "Strong Bullish" ? rt_yellow : rt_trendStrength == "Strong Bearish" ? rt_red : rt_white
rt_heatColor = rt_heat == "Strong Bull" ? rt_yellow : rt_heat == "Strong Bear" ? rt_red : rt_white
rt_structureColor = rt_marketStructure == "Bullish" ? rt_green : rt_marketStructure == "Bearish" ? rt_red : rt_yellow

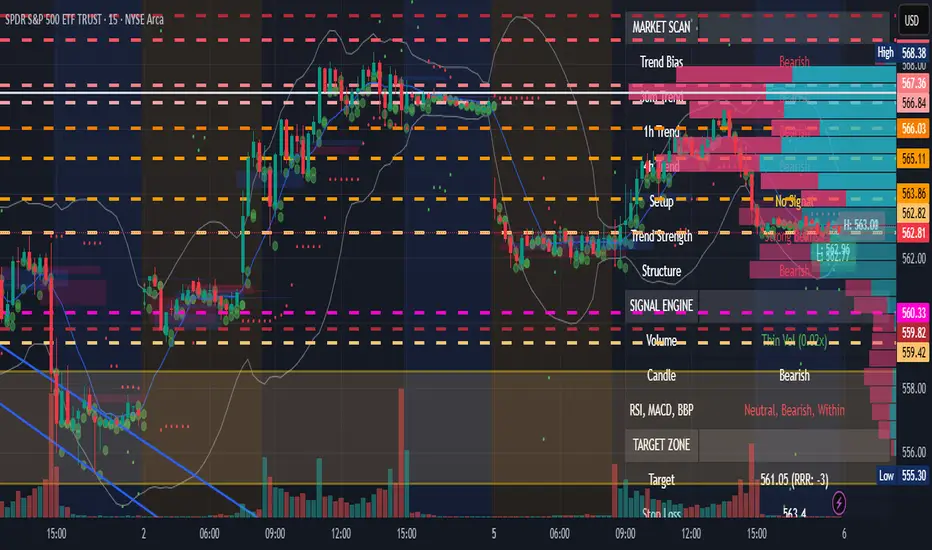

// --- Consolidated Table for Real-Time Analysis ---
var table rt_dashboardTable = table.new(position.top_right, 2, 23, border_width=2)

if ta.change(time) != 0
// Market Scan Section
table.cell(rt_dashboardTable, 0, 0, "MARKET SCAN", text_color=rt_white, bgcolor=rt_sectionHeaderColor)
table.cell(rt_dashboardTable, 1, 0, "", text_color=rt_white, bgcolor=rt_sectionHeaderColor)

table.cell(rt_dashboardTable, 0, 1, "Trend Bias", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 1, rt_marketTrendBias, text_color=rt_trendColor, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 2, "30m Trend", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 2, rt_trendBias_30m, text_color=rt_trendColor_30m, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 3, "1h Trend", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 3, rt_trendBias_1h, text_color=rt_trendColor_1h, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 4, "4h Trend", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 4, rt_trendBias_4h, text_color=rt_trendColor_4h, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 5, "Setup", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 5, rt_setupStatus, text_color=rt_tradeColor, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 6, "Trend Strength", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 6, rt_trendStrength, text_color=rt_trendStrengthColor, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 7, "Structure", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 7, rt_marketStructure, text_color=rt_structureColor, bgcolor=color.new(rt_black, 90))

// Signal Engine Section
table.cell(rt_dashboardTable, 0, 8, "SIGNAL ENGINE", text_color=rt_white, bgcolor=rt_sectionHeaderColor)
table.cell(rt_dashboardTable, 1, 8, "", text_color=rt_white, bgcolor=rt_sectionHeaderColor)

table.cell(rt_dashboardTable, 0, 9, "Volume", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 9, rt_volumeStatus + " (" + str.tostring(rt_volumeRatio, "#.##") + "x)", text_color=rt_volumeColor, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 10, "Candle", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 10, rt_candleStatus, text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 11, "RSI, MACD, BBP", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 11, rt_rsiStatus + ", " + rt_macdStatus1 + ", " + rt_bbStatus, text_color=rt_macdColor, bgcolor=color.new(rt_black, 90))

// Target Zone Section
table.cell(rt_dashboardTable, 0, 12, "TARGET ZONE", text_color=rt_white, bgcolor=rt_sectionHeaderColor)
table.cell(rt_dashboardTable, 1, 12, "", text_color=rt_white, bgcolor=rt_sectionHeaderColor)

table.cell(rt_dashboardTable, 0, 13, "Target", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 13, str.tostring(rt_targetZone, "#.##") + " (RRR: " + rt_rrrText + ")", text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 14, "Stop Loss", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 14, str.tostring(rt_stopLoss, "#.##"), text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 15, "Watch", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 15, rt_whatToWatch, text_color=rt_white, bgcolor=color.new(rt_black, 90))

// Mini Gauge Section
table.cell(rt_dashboardTable, 0, 16, "MINI GAUGE", text_color=rt_white, bgcolor=rt_sectionHeaderColor)
table.cell(rt_dashboardTable, 1, 16, "", text_color=rt_white, bgcolor=rt_sectionHeaderColor)

table.cell(rt_dashboardTable, 0, 17, "Heat", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 17, rt_heat, text_color=rt_heatColor, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 18, "Trend Score", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 18, rt_trendScore, text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 19, "Choppy", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 19, rt_choppy, text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 20, "Entry Filter", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 20, rt_entryFilter, text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 21, "Exit Note", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 21, rt_exitNote, text_color=rt_white, bgcolor=color.new(rt_black, 90))

table.cell(rt_dashboardTable, 0, 22, "Trade Suggest", text_color=rt_white, bgcolor=color.new(rt_black, 90))
table.cell(rt_dashboardTable, 1, 22, rt_miniTradeSuggestion, text_color=rt_white, bgcolor=color.new(rt_black, 90))

// --- Plotting ---
plot(rt_sma, "SMA", color=rt_blue)
plot(rt_upperBB, "Upper BB", color=rt_gray)
plot(rt_lowerBB, "Lower BB", color=rt_gray)
plot(rt_targetZone, "Target", color=rt_green, style=plot.style_circles)
plot(rt_stopLoss, "Stop-Loss", color=rt_red, style=plot.style_circles)

// =============================================================================
// Section 3: Fair Value Gaps (5M & 1M)
// =============================================================================

// Inputs for enabling/disabling timeframes and aesthetics
fvg_show_5m = input.bool(true, "Show 5M FVGs", group="FVG Settings")
fvg_show_1m = input.bool(true, "Show 1M FVGs", group="FVG Settings")
fvg_extend_bars = input.int(10, "Extend FVG Bars", minval=1, group="FVG Settings")
fvg_bull_color = input.color(color.new(#2962FF, 85), "Bullish FVG Color", group="FVG Colors")
fvg_bear_color = input.color(color.new(#E91E63, 85), "Bearish FVG Color", group="FVG Colors")

// Function to identify FVGs on a given timeframe
f_fvg_data(string timeframe) =>
fvg_high_tf = request.security(syminfo.tickerid, timeframe, high, gaps=barmerge.gaps_off)
fvg_low_tf = request.security(syminfo.tickerid, timeframe, low, gaps=barmerge.gaps_off)
fvg_high_tf_2 = request.security(syminfo.tickerid, timeframe, high[2], gaps=barmerge.gaps_off)
fvg_low_tf_2 = request.security(syminfo.tickerid, timeframe, low[2], gaps=barmerge.gaps_off)

// Detect Bullish FVG: Current low > high[2]
fvg_bull_fvg = fvg_low_tf > fvg_high_tf_2
fvg_bull_top = fvg_low_tf
fvg_bull_bottom = fvg_high_tf_2

// Detect Bearish FVG: Current high < low[2]
fvg_bear_fvg = fvg_high_tf < fvg_low_tf_2
fvg_bear_top = fvg_low_tf_2
fvg_bear_bottom = fvg_high_tf

[fvg_bull_fvg, fvg_bull_top, fvg_bull_bottom, fvg_bear_fvg, fvg_bear_top, fvg_bear_bottom]

// Identify FVGs on 5M and 1M timeframes
[fvg_bull_fvg_5m, fvg_bull_top_5m, fvg_bull_bottom_5m, fvg_bear_fvg_5m, fvg_bear_top_5m, fvg_bear_bottom_5m] = f_fvg_data("5")
[fvg_bull_fvg_1m, fvg_bull_top_1m, fvg_bull_bottom_1m, fvg_bear_fvg_1m, fvg_bear_top_1m, fvg_bear_bottom_1m] = f_fvg_data("1")

// Plot FVGs as background boxes (transparent, no text)
if fvg_show_5m and fvg_bull_fvg_5m and not na(fvg_bull_top_5m) and not na(fvg_bull_bottom_5m)
box.new(left=bar_index[2], top=fvg_bull_top_5m, right=bar_index + fvg_extend_bars, bottom=fvg_bull_bottom_5m, border_color=color.new(color.gray, 100), bgcolor=fvg_bull_color)

if fvg_show_5m and fvg_bear_fvg_5m and not na(fvg_bear_top_5m) and not na(fvg_bear_bottom_5m)
box.new(left=bar_index[2], top=fvg_bear_top_5m, right=bar_index + fvg_extend_bars, bottom=fvg_bear_bottom_5m, border_color=color.new(color.gray, 100), bgcolor=fvg_bear_color)

if fvg_show_1m and fvg_bull_fvg_1m and not na(fvg_bull_top_1m) and not na(fvg_bull_bottom_1m)
box.new(left=bar_index[2], top=fvg_bull_top_1m, right=bar_index + fvg_extend_bars, bottom=fvg_bull_bottom_1m, border_color=color.new(color.gray, 100), bgcolor=fvg_bull_color)

if fvg_show_1m and fvg_bear_fvg_1m and not na(fvg_bear_top_1m) and not na(fvg_bear_bottom_1m)
box.new(left=bar_index[2], top=fvg_bear_top_1m, right=bar_index + fvg_extend_bars, bottom=fvg_bear_bottom_1m, border_color=color.new(color.gray, 100), bgcolor=fvg_bear_color)

// Plot the candlestick chart (shared across all sections)
plotcandle(open, high, low, close, "Candles", color.green, color.red)
